Application Purposes:
• For drywall construction
• For installation in part or room-height prewall installations
• For installation in room-height installation walls
• For floor-standing WCs
Characteristics:

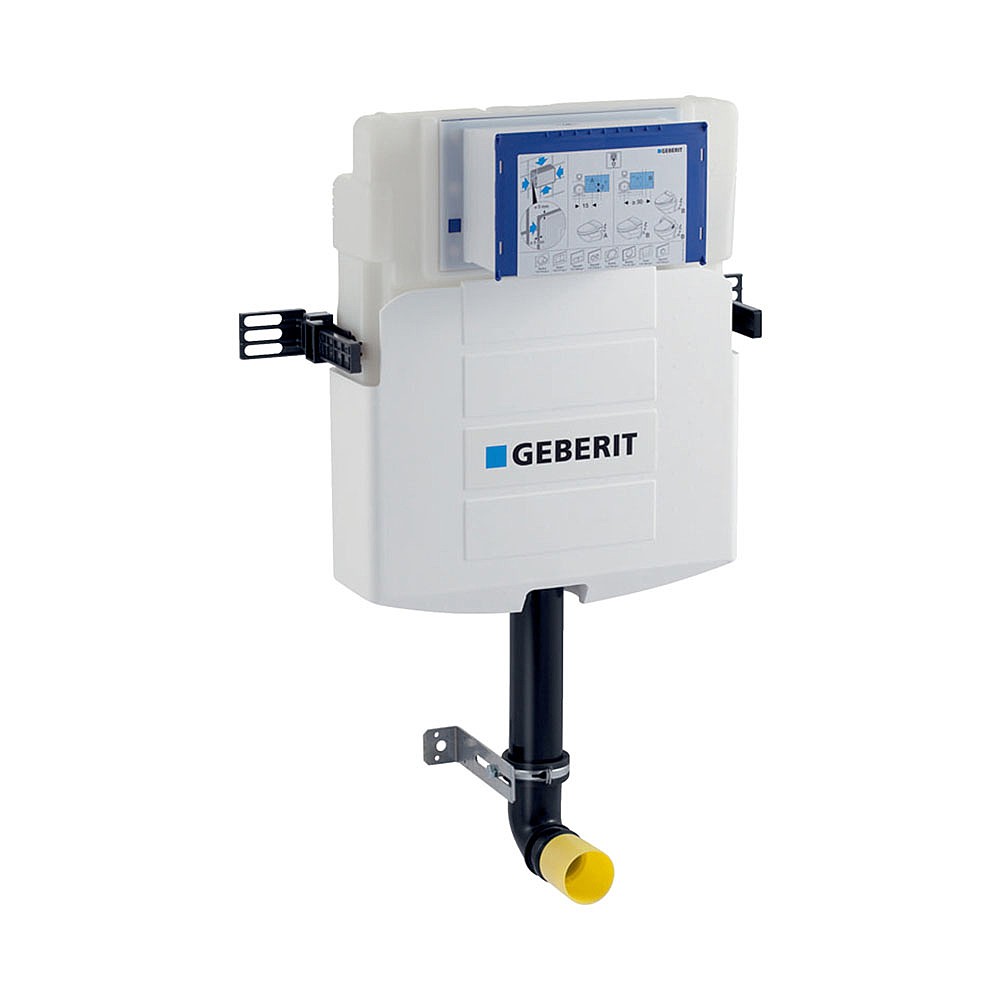

• Concealed cistern with front actuation
• Concealed cistern, fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Immediate post flush possible with factory setting
• Flush bend fitted
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection on the rear or top centre
• Protection cover box for service opening protects against moisture and dirt
• Protection box for service opening can be cut to length
Technical Data:
• Flow pressure 0.1-10 bar
• Maximum operating temperature, water 25°C
• Flush volume, factory setting 5.8 and 3l
• Flush volume small, adjustment range 2-4l
Scope of delivery
• Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel
• Protection box for service opening
• Flush bend 90°
• Fastening for flush bend
• Protection plug
• 2 slotted flat irons
• 2 fixing brackets
• Fastening material
• Flush bend extension, ø 45mm
